EGX.Albatros

EGX.Albatros
  • System Properties
    Section Width : 76 mm
    Number of Chambers : 5
    Gasket System : Double Gasket (Inner-External)
    Gasket Type/Color : TPE - Grey / Black
    Glass Thicknesses (mm) : 4, 20, 24, 30
    Thermal Insulation : Uw: 1.2 W/m2K, Uf: 1.4 W/m2K



    Superior Insulation: Albatros features a 76 mm wide, 5-chamber design, providing excellent thermal and sound insulation. The double gasket system ensures tight sealing against air, water, and dust, achieving a thermal insulation value of Uw = 1.2 W/m2K.

    Smooth Sliding Mechanism: Equipped with high-quality rails and rollers, Albatros sliding systems ensure smooth and effortless operation, delivering a user-friendly experience with minimal maintenance.

    Modern and Flexible Design: Supports glass thickness options up to 36 mm for double and triple glazing. Available in 13 color options, allowing customization to suit diverse architectural styles. Optimized section heights maximize glass area, creating brighter and more open spaces.

    Enhanced Durability: The UV-resistant, elastic TPE gaskets and corrosion-resistant materials ensure long-lasting performance in all weather conditions.

    Ease of Integration: Compatible with fly screens and additional hardware options for enhanced functionality and comfort.



    Why Choose EGX.Albatros?

    1. Smooth Operation: Effortless sliding with durable rail systems.
    2. High Insulation Performance: Tight sealing for energy efficiency.
    3. Modern Aesthetic: Sleek profiles with customizable colors.
    4. Durability: UV-resistant gaskets and long-term corrosion protection.
    5. User-Friendly Design: Minimal maintenance with enhanced functionality.

  • Product Information

    Effortless Sliding, Superior Insulation, and Modern Design
    Albatros systems combine high performance, smooth operation, and aesthetic flexibility, developed todeliver exceptional results for both residential and commercial projects.

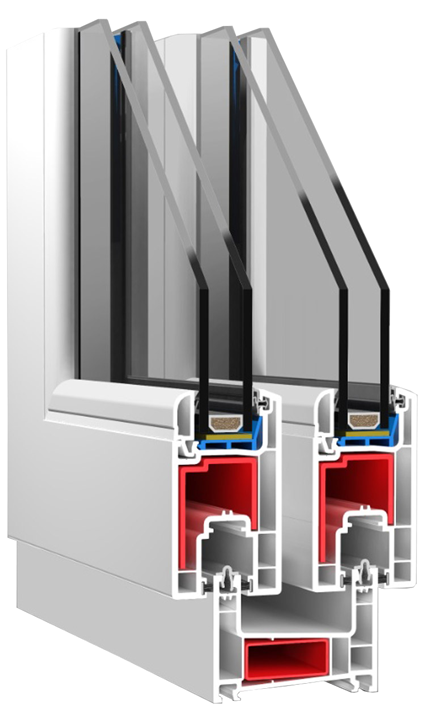

  • Section

    The Pimapen Albatros Sliding Series offers solutions to meet a variety of needs with six types of frame sections. Sliding window and door applications can be configured with two, three, four, five, or six sashes. The movable sash is located inside the fixed compartment case section, ensuring ergonomic and safe use. Additionally, external applications for mosquito nets and shutters operate more efficiently.


  • Glass Combinations

    Single and double glass units are available in widths of 4, 20, and 24 mm, as well as laths for panel use. The units are impact-resistant due to the application of tempered glass.

  • Design

    Self-molding frame sections ensure visual consistency at the joinery wall joints on the inner surface. The case section features its own mosquito net rail, allowing for the installation of sliding mosquito nets without the need for additional rails. Additionally, the specially designed fuga and oval laths create aesthetically pleasing glass joints.
